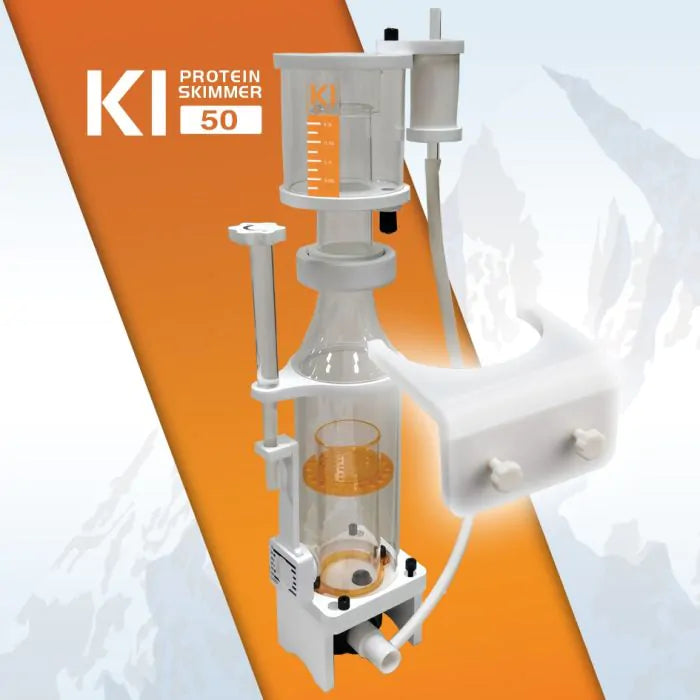

IceCap K1-50 Protein Skimmer

Modern Design and Functionality

The IceCap K1-50 is a remarkably compact skimmer that offers a new level of refined filtration for marine aquariums ranging from 40 to 80 gallons. All aspects of the skimmer were implemented to surpass many challenges other skimmers on the market misses out on.

Compact & Built to Last

Master crafted from robust PVC and high-quality acrylic. All components are marine safe and refined in every aspect to provide the latest enhancements in foam fractionation and the highest in quality.

The elegant “Beer Bottle" curve of the skimmer body naturally stabilizes the air and water mix as they transition upward within the reaction chamber. An impressively compact footprint makes it the ideal candidate for tight sump applications. Every aspect of the skimmer disassembles completely for easy service.

Quiet Performance & Control

At the Core of the IceCap K1-50, you will find a super-efficient DCAIR-700 DCskimmer pump that packs this skimmer with tons of microbubbles.

The pipeless output offers fine-tuning and trouble-free underwater outflow plus quiet operation. The wedge pipe commonly used on other skimmers to channel outgoing water often causes performance inconsistency and additional sound. Our pipeless design not only saves on space but also allows the outgoing water to exit on the side of the skimmer and below the water surface providing splash-free circulation in the sump.

Located much lower in the reaction chamber, the unique bubble dispersing chamber offers a multi-stage diffusion of water, additional contact time for enhanced foam stability.

Bioload Handling

The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.

(EXCLUDING SUMP)

• 40 gal
• 60 gal
• 80 gal

Impressive Performance - Remarkably Small Footprint

• Distinctive Turbulence Reducing Body
• Includes Optional Hanging Bracket
• Solid PVC & Acrylic Construction
• Bubble Dispersant Chamber
• Novel Pipeless Output Valve
• Efficient & Quiet Operation
• Disassembles Completely for Easy Cleaning & Maintenance
• In-Sump Installation Only

K1-50 Technical Specs

Skimmer Body: 3in
Footprint: 4.75in x 3.5in
Neck Size: 1.5in
Total Height: 19in
Cup Drain Size: 6mm ID / 9mm OD

Recommended Sump
Water Height: 6 - 9in

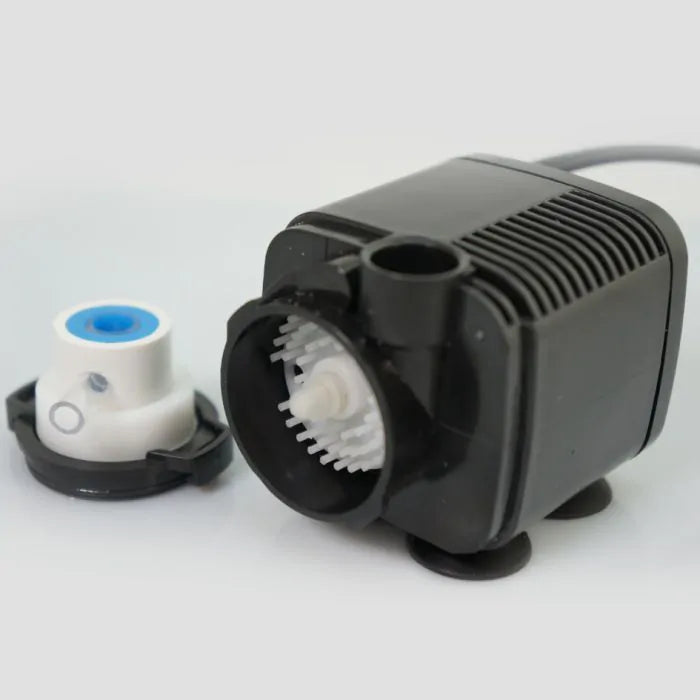

Pump Information

DCAIR-700 DC Pinwheel Pump
Power Consumption: 6watts
Air Draw: 200lph / 7SCFH*
Water Draw: 70gph

*Air and water results will vary depending on aquarium setup
